Technology

CLAD® Systems are designed to perform.

CLAD® technology leverages the earth's stable water temperatures underground for sustainable heat transfer, delivering highly reliable performance and optimal energy efficiency.

Genesys CLAD wellcap

Geothermal Redefined

The patented CLAD® system is redefining geothermal by delivering the most flexible closed-loop groundwater-source geothermal solution. Engineered to maximize performance while minimizing space, cost, and complexity, Genesys removes barriers that have historically limited geothermal adoption.

Consistent performance - year round.

01

The CLAD® system unites a traditional closed-loop with an underground thermal diffusion system

02

A closed-loop system pumps fluid from the building through a series of CLAD® heat exchangers

03

Small amounts of groundwater are pumped through the CLAD® heat exchanger in the supply well

04

Closed-loop fluid is circulated back to the building for heating or cooling

05

The groundwater is discharged into diffusion well and back into the same aquifer

With dedicated diffusion wells engineered for continuous thermal dissipation, the CLAD® system prevents heat buildup and ensures stable, efficient operation throughout the year.

Diagram of a building using aquifer water for summer cooling
Diagram of a building using aquifer water for winter heating
Cooling
Heating

Less space, less cost, less complexity.

This cleaner, more efficient, and more deployable solution from Genesys is making high-performance geothermal accessible to more buildings, more sites, and more applications.

  • Uses conventional water wells for simplified drilling and installation.
  • Fewer well holes reduce site disruption and installation time by up to 80%.
  • Each supply well can produce up to 200 tons of cooling, reducing land needed by up to 85%.
  • Up to 95% less vertical drilling, dependent on subsurface characteristics.

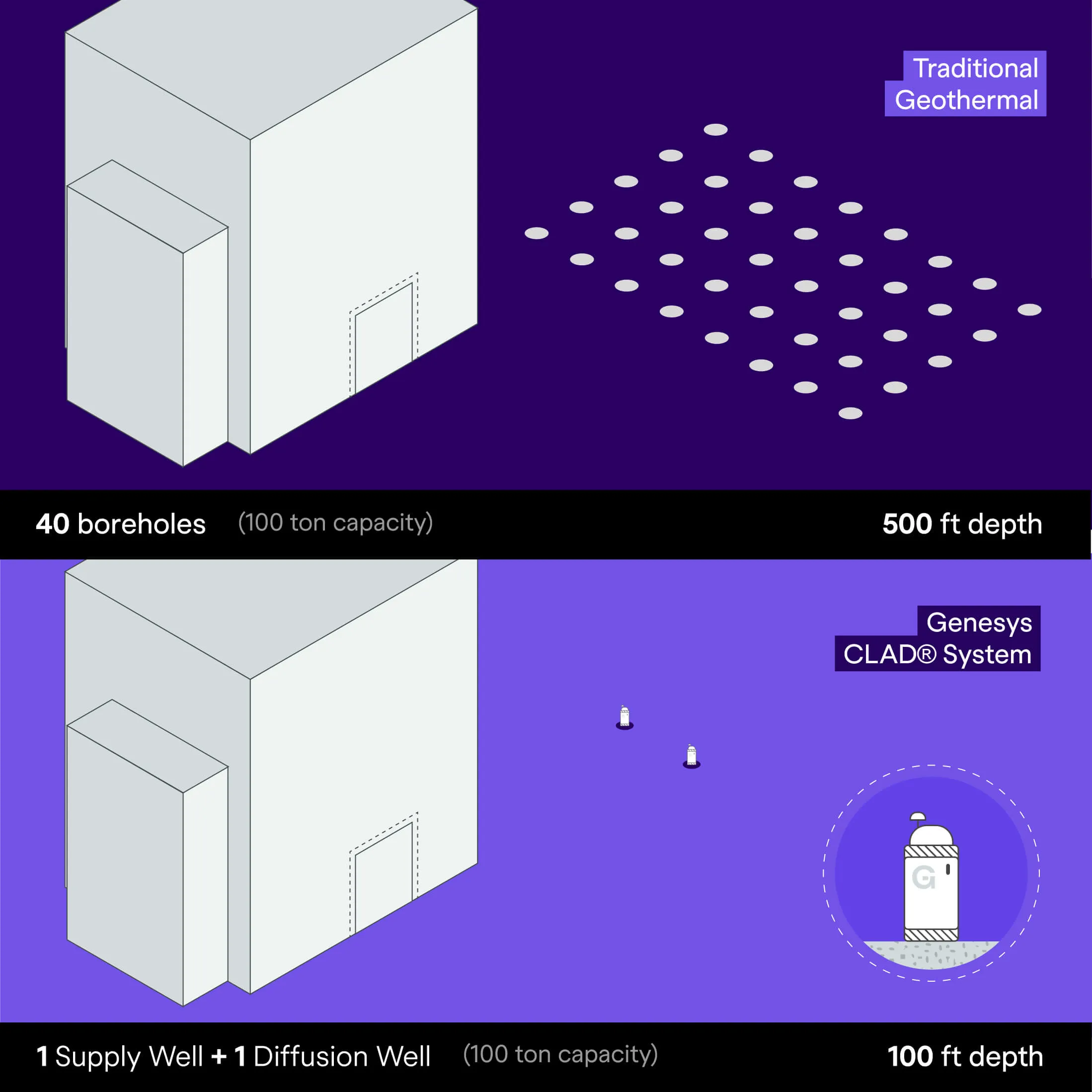

Comparison chart of traditional geothermal boreholes versus the Genesys CLAD system

The CLAD® System Advantage

The Genesys CLAD® system is redefining geothermal by delivering an advanced closed-loop groundwater-source solution engineered to maximize performance while minimizing space, cost, and complexity.

Zero Water Consumption

The pressurized CLAD® system design returns all water to the same aquifer without leaving the ground, resulting in zero water consumption.

Minimal Site Footprint

CLAD® systems require significantly fewer wells than traditional geothermal systems, enabling deployment at space-limited sites. This lowers installation cost, shortens timelines, and minimizes disruption.

Precision Temperature Control

The CLAD® system delivers a narrow, consistent entering water temperature range. This allows heat pumps to operate within a controlled and narrow temperature band for reliably higher performance.

HVAC System Integration

CLAD® systems are designed to integrate with new and existing hydronic-based heating and cooling infrastructure.

Remote Monitoring
& Safety

The CLAD® system is designed to ensure proper and safe operation with building automation controls providing real-time monitoring of entering and leaving water temperature, pressure, flow, and safety conditions.

No Thermal Buildup

The CLAD® system design eliminates the risk of thermal buildup in the ground through downstream diffusion wells, ensuring consistent performance year after year, regardless of whether loads are heating or cooling dominant.

Learn more about Genesys solutions

Explore a More Efficient Alternative to Conventional HVAC

See how Genesys CLAD® systems delivers high-performance geothermal heating and cooling with lower costs and greater efficiency.

Get started

CLAD® System FAQs

Find answers to the most frequently asked questions about our technology.

What is a CLAD® system?

The CLAD® system is a groundbreaking, patented heat transfer solution in the geothermal industry, consisting of supply and diffusion wells to harness the stable temperatures underground and advective properties of water to exchange heat.

How does CLAD® differ from conventional geothermal heating and cooling?

Traditional geothermal closed-loop systems often face challenges such as significant land requirements and the need for deeper drilling, which can complicate installation.

CLAD® effectively addresses these issues by significantly lowering installation costs and reducing the land needed for drilling. Our technology achieves this by leveraging more heat exchange capacity from fewer wells. This not only simplifies the installation process but also boosts performance.

What makes this solution a more sustainable option for heating & cooling?

At Genesys, reducing our environmental impact is foundational to our mission as a clean technology company. Our geothermal heating and cooling solutions deliver enhanced energy efficiency, lower carbon emissions, and responsible resource management.

Decarbonization: Through the use of renewable thermal energy, our technology replaces the reliance on fossil fuels used in traditional HVAC systems.

‍Groundwater Preservation: Our patented design keeps groundwater below the surface and free from any potential contamination. Our solutions operate with zero water depletion, returning every drop back to the same aquifer.

How do I get started with installing a Genesys geothermal CLAD® system?

Getting started with your Genesys geothermal installation is simple! Just send us a message here, and our team will reach out to you. We look forward to partnering with you and understanding your site’s needs. Contact us to take the first step toward efficient heating and cooling!
